GC-S55L
Engine Model ：CUMMINS HFC4DA1-2C3
Rating：36.8KW
Rated load：890Kg
Product Gallery
Product Information
Products

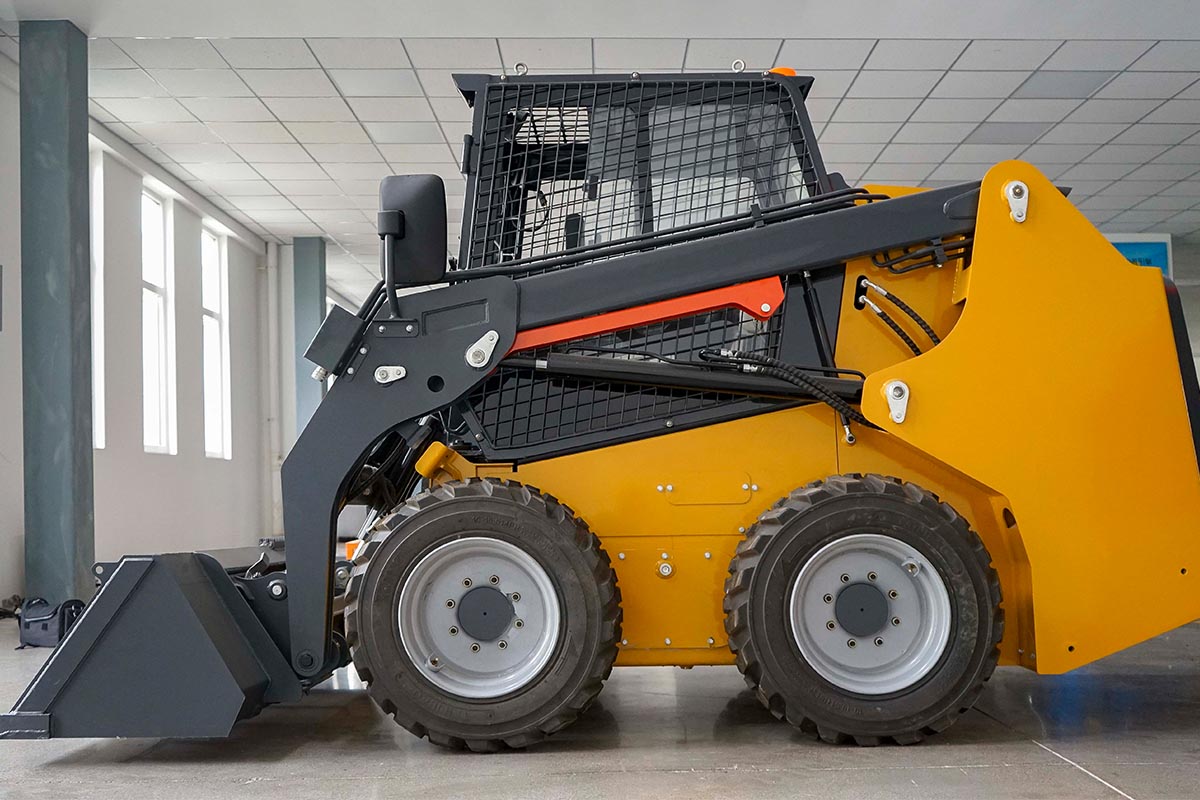

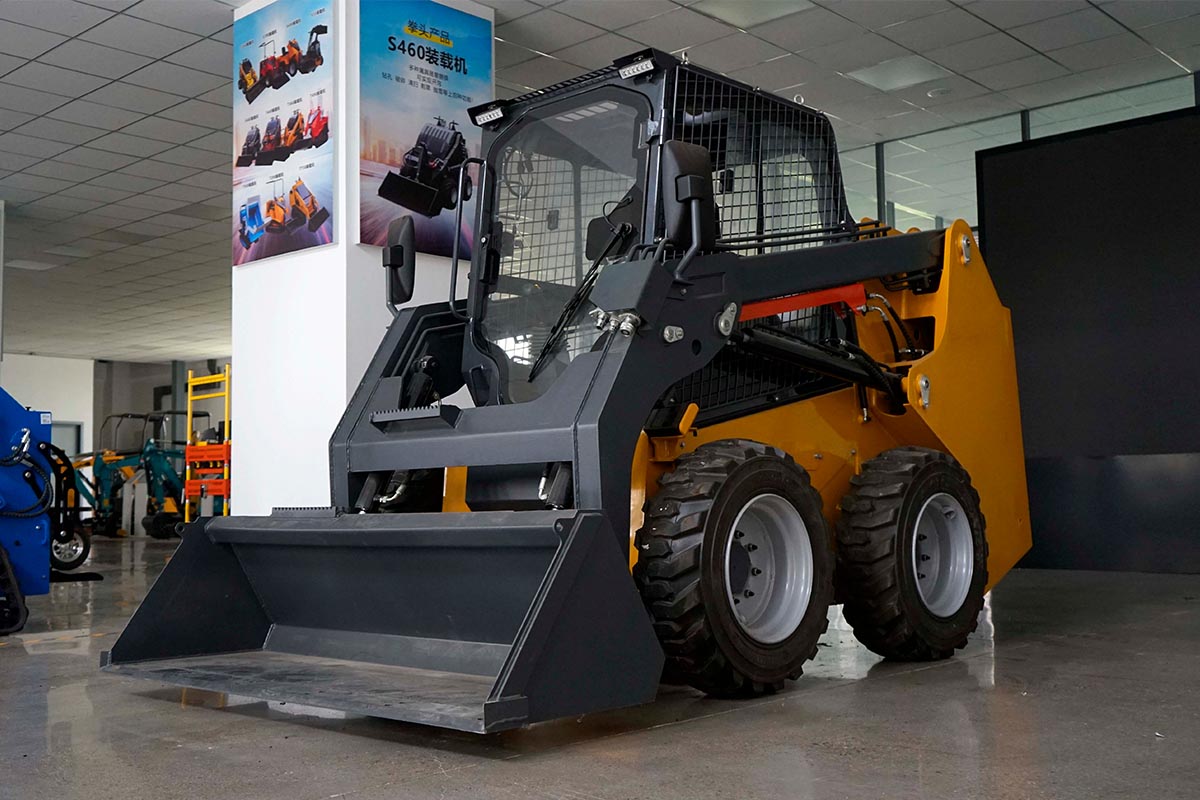

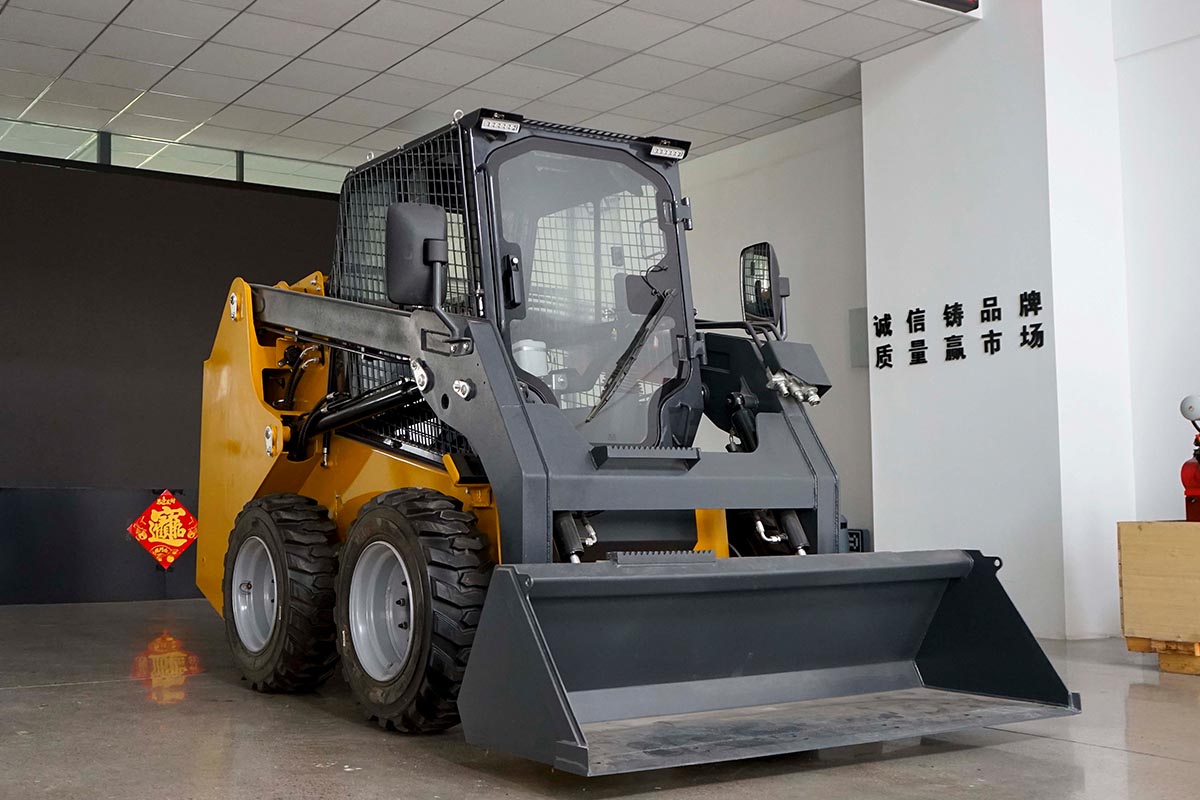

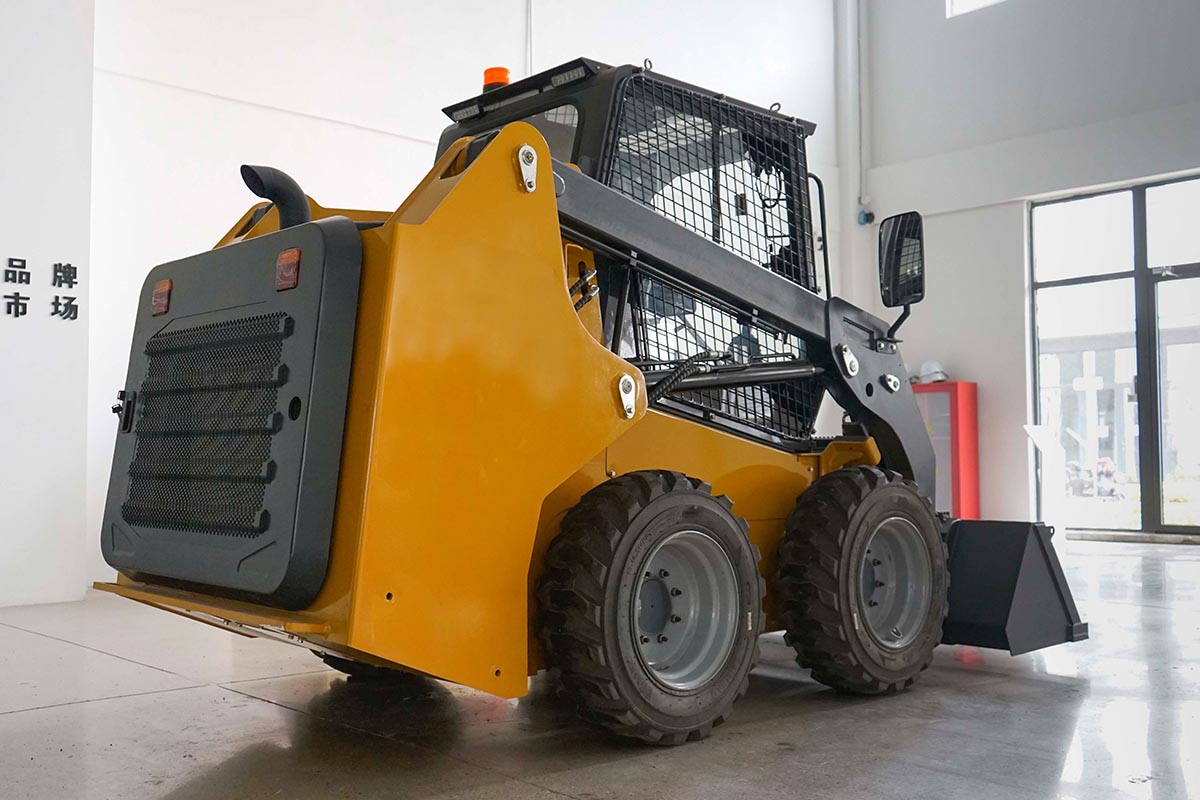

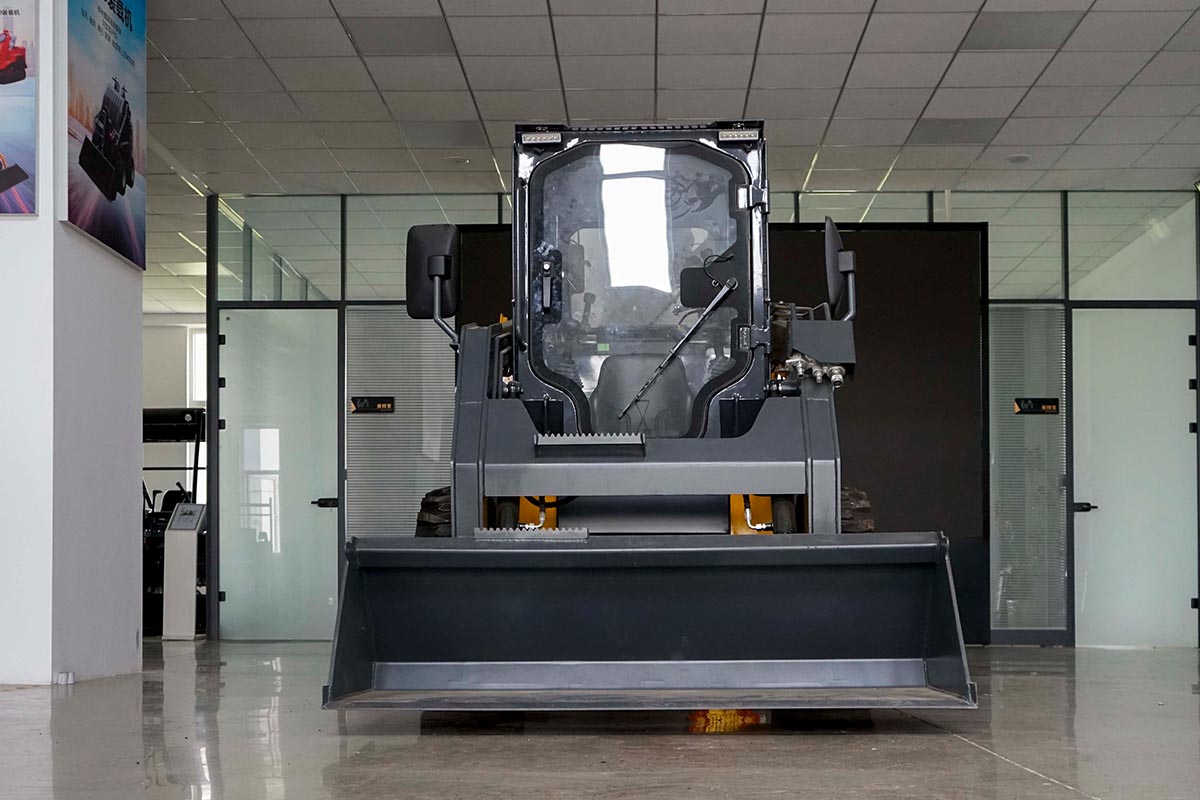

This wheeled skid steer loader is an all-round equipment designed for efficient operation. Equipped with Cummins HFC4DA1-2C3 engine, it delivers strong power with a rated power of 36.8KW, and with natural aspiration, it meets the National III emission standard while guaranteeing the power, which is a good balance between environmental protection and performance. With an operating mass of 2880±3% Kg, the stable body design of the equipment provides a solid foundation for all kinds of operations, which can easily cope with both heavy material handling and fine site grooming.
Usage Scenarios
Municipal engineering: garbage removal in narrow streets, material transfer when paving sidewalks, its compact and flexible body (1640±2% mm in width) can shuttle freely in confined spaces, and its ground clearance of 185±2% mm can also adapt to different road conditions.
Construction site: short-distance transportation of gravel and building materials. With a bucket capacity of 0.4m and a rated load of >1780, the truck can efficiently load materials; with a maximum lifting force of >25KN, the truck can easily handle foundation leveling and other operations.
Agricultural field: handling fertilizers and fodder in farms, cleaning up the field after harvesting crops, the driving speed of 0-12km/h can be flexibly adjusted to meet the needs of different operating rhythms.
Garden maintenance: earth moving during tree transplanting, debris clearing during green belt trimming, with a maximum operating height of 3790mm and a maximum unloading height of 2384±5% mm, it is more convenient for aerial work and material unloading.
Main parameters
| Model | GC-S55L |
Engine model | CUMMINS HFC4DA1-2C3 |
Rated power | 36.8KW |
Cylinder | 4 |
Intake | Naturally aspirated |
Emission standard | National III |
Rated load | 890Kg |
Dumping load | >1780 |
Maximum digging force | >25KN |
Bucket volume | 0.4m |
Travel speed | 0-12km/h |
Hydraulic flow rate | 55L/Min |
Pressure | 21Mpa |
Fuel tank volume | 80L |
Operating mass | 2880±3% |
Tire type | 10-10.5 |
Maximum operating height | 3790mm |
Height to bucket pins | 3020mm |
Cab roof height | 2095±5%mm |
Bucket ground level length | 3450±5%mm |
Bucket pin level length | 2700±5%mm |
Maximum horizontal distance to bottom of bucket | 2846±5%mm |
Maximum unloading height | 2384±5%mm |
Unloading distance | 520±1%mm |
Bucket turnover angle at ground level | 27±2mm |
Bucket turnover angle at peak | 43±2mm |
Wheelbase | 1370mm |
Ground clearance | 185±2%mm |
Tail length | 1160±5%mm |
Vehicle width | 1640±2%mm |
Bucket width | 1800±2%mm |
Why GC-S55L
Strong power and environmental protection: Cummins engine not only provides sufficient power, but also meets the National III emission standard, making the operation both efficient and green.
Flexible and efficient operation: the compact body design enables it to work in narrow spaces, and the flexible traveling speed adjustment and hydraulic system operation greatly improve the operating efficiency.
Outstanding load carrying and operating capacity: high rated load, large digging force and suitable bucket volume meet the needs of a variety of material handling and adapt to different operating intensity.
Good stability and passability: Reasonable wheelbase, ground clearance and body dimensions ensure that the equipment can work stably on all kinds of terrains and easily cope with complicated road conditions.
Contact us today for customized configurations and real-time quotes.
