GC-ME100
The weight of the：600Kg
Dig milling head width：690mm³
Dig milling head diameter：420mm
Dig head milling speed：70-100r/min
Overall dimension(LxWxH)：6800mm×1700mm×2150mm
Product Gallery
Product Information
Products

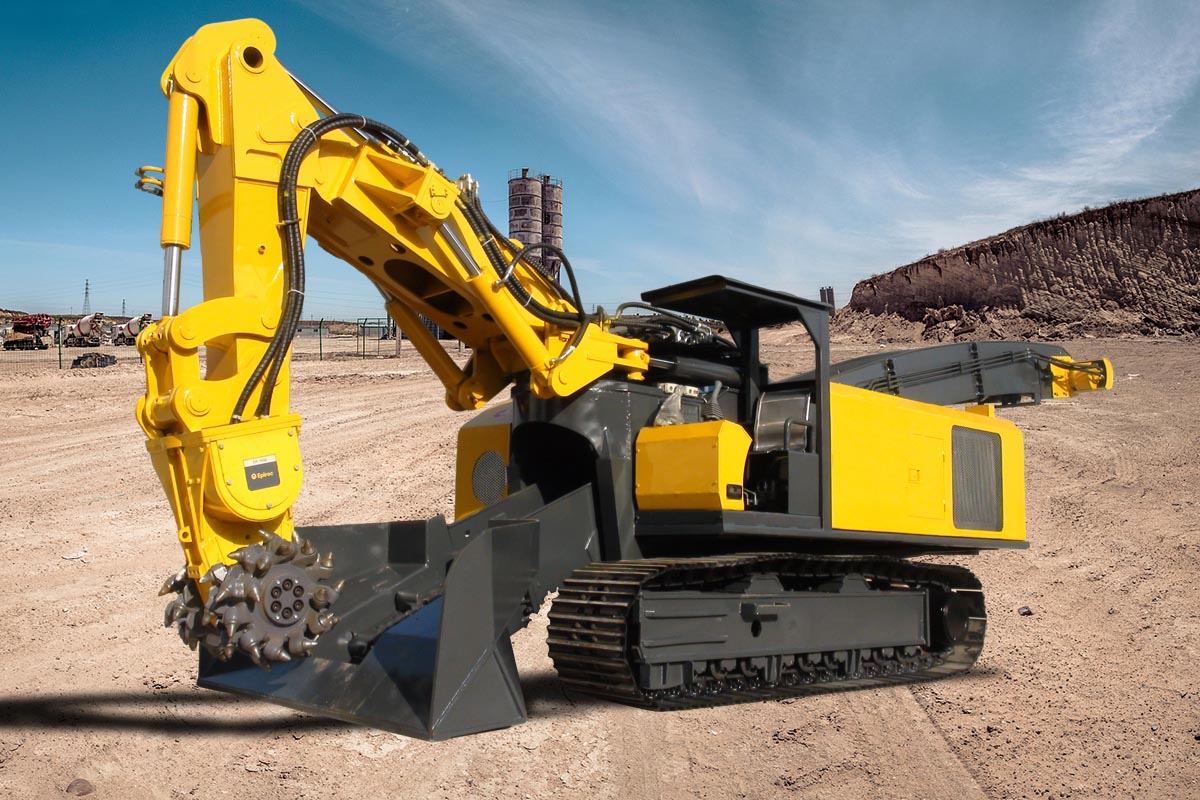

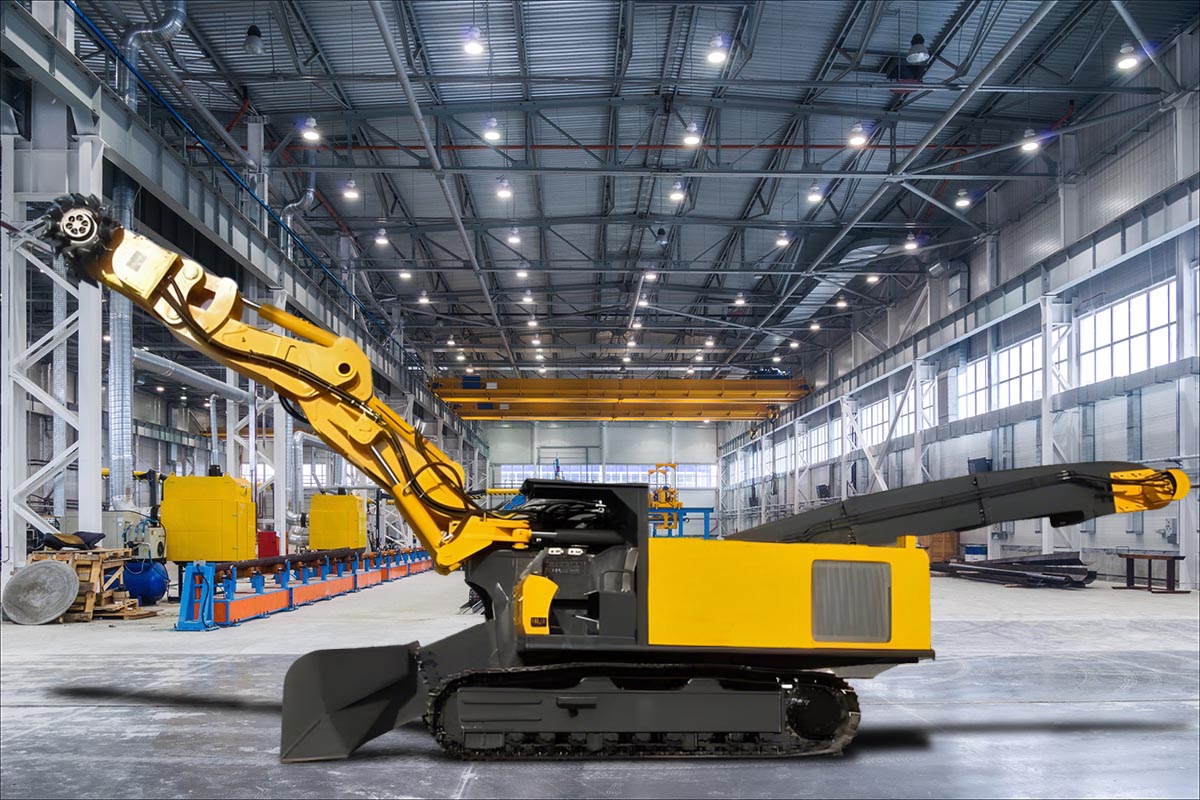

GC-ME100 is a high efficient machine designed for fine milling and excavating work. With a lightweight design of ≈600kg and a flexible body of 6800mm×1700mm×2150mm, it can work freely in narrow spaces. 45kw maximum power drive, the milling head rotates at a speed of 70-100r/min, with a torque of 4800N/M, and with a working pressure of 25/31.5mpa, the width of the 690mm milling head realizes precise milling, whether it is road renovation or tunnel repair or concrete structure demolition, it can complete the work with high precision and high efficiency. Whether it is road surface renovation, tunnel repair or concrete structure demolition, the work can be completed with high precision and high efficiency.
Usage Scenarios
Variety mining face roadway repair: in the variety mining face, such as the upper and lower tunnels and other heavy-duty roadways, 1200mm width can be adapted to the bracket spacing, 300mm track plate width and ≤ 0.1mpa ground pressure, to avoid crushing the roadway floor. 37KN bucket digging force can quickly clean up the collapsed gangue, the three-section arm structure to achieve ≥ 5250mm digging width, with 68mm brazing specification of the crushing device can be used to With the crushing device of 68mm brazing tool, it can break hard rock and concrete support, clearing the obstacles for the advancement of comprehensive mining equipment.
Deep roadway maintenance: Facing the deformation repair of deep high-stress roadways, the R37's 4800mm digging height can deal with the problem of roadway roof subsidence, and the 2450mm digging depth can repair the bottom slab bulge. The integrated hydraulic motor reducer-driven tracks provide stable travel on 14° slopes, and the 26m/min travel speed allows for fast travel to and from the working surface, enhancing the efficiency of deep roadway maintenance.
Roadway ganging and undercutting: When it is necessary to gang or undercut the roadway, the 1200mm×320mm push shovel can level the working surface, and the maximum pushing depth of 200mm can accurately control the undercutting amount. The flexible rotation of the three-section arm and the 360° working range can accurately trim the roadway contour to meet the needs of roadway section expansion and ensure the safety of transportation and ventilation.
Main parameter
Model | GC-ME100 | GC-ME120 | GC-ME260 |
Dig milling head width | 690mm | 760mm | 100mm |
Dig milling head diameter | 420mm | 525mm | 720mm |
Dig head milling speed | 70-100r/min | 80-110r/min | 60-85r/min |
Traffic | 70-110L/min | 80-120L/min | 280-300L/min |
Pressure of work | 25/31.5mpa | 25/31.5mpa | 31.5mpa |
Distorted | 4800N/M | 5200N/M | 23400N/M |
The weight of the | ≈600kg | ≈650kg | ≈1850kg |
Max power | 45kw | 55kw | 180kw |
Overall dimension(LxWxH) | 6800mm×1700mm×2150mm | 7500mm×1900mm×2250mm | 11000mm×2400mm×2250mm |
Excavating Width | 4200mm | Standard arm5300mm Short arms4800mm | 6300mm |
Excavating Distance | 1650mm | 2200mm | 3300mm |
Excavating Height | 3850mm | Standardarm3300mm Short arms2700mm | 5600mm |
Excavating Depth | 500mm | Standardarm700mm Short arms400mm | 1500mm |
Uninstall Height | 1700mm(Can be heightened) | 1800mm(Variable) | 1900mm(Can be heightened) |
The minimum height Uninstall | 1350mm(Variable) | 1680mm(Variable) | 1900mm(Variable) |
Distance | 1700mm(Can be lengthened or shortened) | 2000mm(Can be lengthened) | 1900mm(Can be lengthened or shortened) |
Max.rotation angle | ±45° | ±45° | ±50° |
Why GC-ME100
Precise milling and digging, quality assurance: 690mm width of the milling head with 70-100r/min adjustable rotating speed can accurately control the milling range and depth, and 4800N/M torque ensures the milling process is stable, and the surface after milling is smooth and even, which greatly improves the quality of the work.
Flexible and efficient, widely adapted: 1700mm width and flexible body shape, work freely in narrow space and complex environment; 4200mm digging width and ±45° rotation angle, reduce the frequent movement of the equipment, can be taller, longer unloading parameters to adapt to different transportation needs, improve operational efficiency.
Strong power and reliable performance: 45kw maximum power and 25/31.5mpa working pressure provide sufficient power for milling and digging operations; reasonable structural design and high-quality components ensure stable operation of the equipment under long-time and high-intensity operation, and reduce the incidence of failure.
Convenient operation and cost reduction: lightweight design reduces the burden of equipment handling and installation; easy-to-operate control system reduces labor cost; precise milling reduces material waste; adjustable operating parameters adapt to different working conditions, comprehensively reducing construction costs.
Contact us today for customized configurations and real-time quotes.
