GC-FE20
Weight：2±0.2T
Bucket Capacity：0.12±0.015m³
Overall dimension(L×W×H)：3500mm×1100mm×2250mm
Product Gallery
Product Information
Products

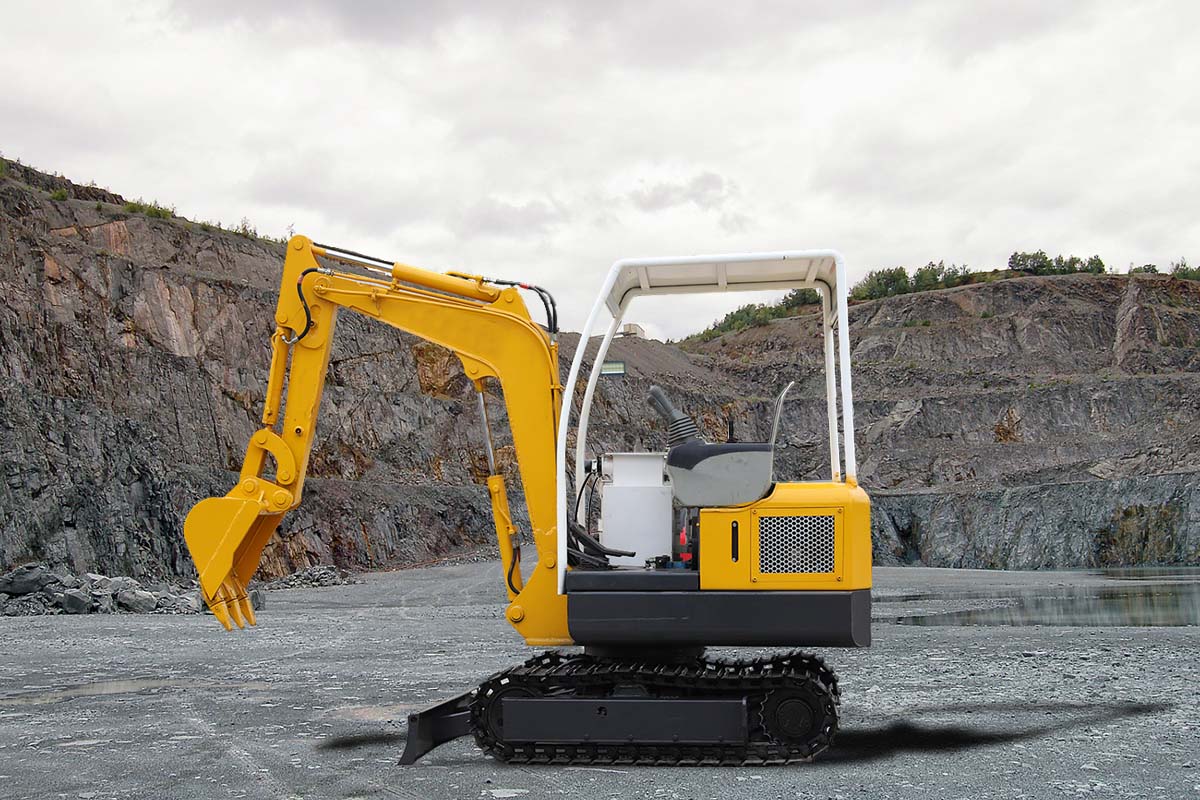

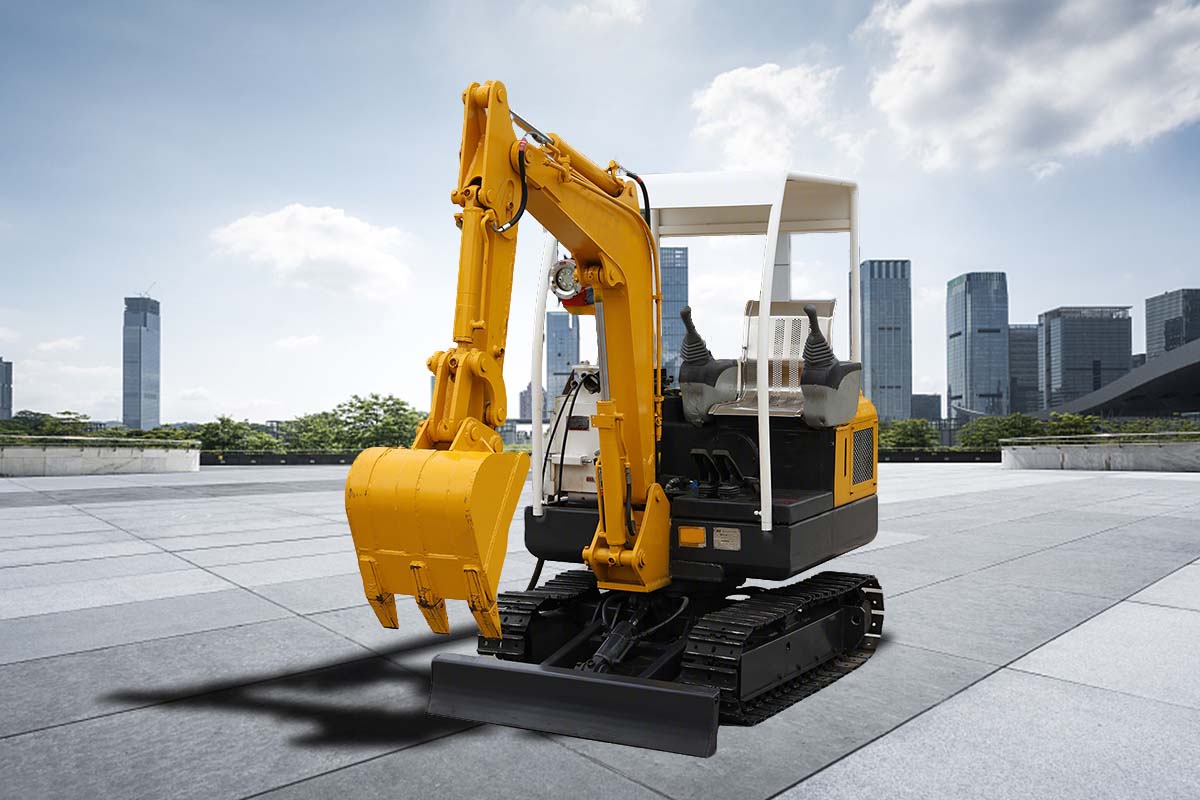

GC-FE20 explosion-proof excavator is designed for safe operation in flammable and explosive hazardous environments. 2±0.2T weight with a compact shape of 3500mm×1100mm×2250mm, it can work flexibly in restricted spaces. 18.5kw motor power drive, with 18/20mpa rated working pressure, the bucket capacity of 0.12±0.015m³, maximum digging force ≥13kN, 360° rotating angle to realize all-round operation. 0.015m³, maximum digging force ≥13kN, 360° rotating angle to realize all-round operation. With professional explosion-proof design and strong performance, it protects the operation in hazardous environment.
Usage Scenarios
Construction in chemical parks: In chemical parks where flammable and explosive gases are present, the explosion-proof feature of GC-FE20 can effectively avoid the danger caused by sparks, and its width of 1100mm can travel through narrow passages between installations, and its maximum digging radius of ≥3600mm can cover a large working area, so it can easily complete the tasks of excavating the foundations of the equipments and digging pipeline trenches, etc., and guarantee the safety of the construction and maintenance of the chemical facilities.
Underground coal mine operation: the environment of underground coal mine is complicated and there are gas and other explosive gases, the explosion-proof design of this excavator is the key to safe operation. The ≥16° climbing capacity and track design can adapt to the uneven road surface in the underground; the grounding pressure of ≤0.08mpa avoids crushing the bottom plate in the underground, and the traveling speed of 0.89kw/h ensures the safety of the operation, which can help repairing the roadway and handling materials in the underground.
Oil and gas field engineering: When working around drilling platforms or along oil pipelines in oil and gas fields, GC-FE20 can meet the strict explosion-proof requirements. With a maximum digging height of ≥3000mm and a maximum digging depth of ≥1750mm, the GC-FE20 can complete site leveling, foundation excavation and other operations, and the 360° rotating angle makes the operation more flexible and ensures the safe advancement of oil and gas field projects.
Main parameters
Model | GC-FE20 | GC-FE35 |
Weight | 2±0.2T | 3.5±0.2T |
Overall dimension(LxWxH) | 3500mm×1100mm×2250mm | 3800mm×1400mm×2350mm |
Bucket Capacity | 0.12±0.015m³ | 0.22±0.015m³ |
Max Excavating Height | ≥3000mm | ≥3800mm |
Max Excavating Depth | ≥1750mm | ≥1500mm |
Ground clearance | ≥200mm | ≥200mm |
Max Discharge Height) | ≥2000mm | ≥2600mm |
Max vertical dingging depth | ≥1100mm | ≥1000mm |
Traveling Speed | 0.89kw/h | 0.89kw/h |
Nominal working pressure | 18/20mpa | 18/20mpa |
Rotation angle | 360° | 360° |
Motor Power | 18.5kw | 30kw |
Maximum excavation radius | ≥3600mm | ≥3750mm |
Maximum digging force(bucket | ≥13kN | ≥23kN |
Climbing ability | ≥16° | ≥18° |
Ground pressure | ≤0.08mpa | ≤0.08mpa |
| Minimum turning radius of track | ≤1.7m | ≤1.6m |
Why GC-FE20
Explosion-proof design, safe and worry-free: professional explosion-proof treatment eliminates sparks, high temperature and other safety hazards from the root, which can work in chemical industry, coal mine, oil and gas fields and other flammable and explosive environments, and provides a solid guarantee for the safety of personnel and equipment.
Flexible and efficient, easy to operate: Compact body with ≤1.7m minimum turning radius of crawler, it can turn flexibly in narrow space; 360° swivel angle and comprehensive digging parameters make the working range wider and improve the working efficiency in dangerous environment.
Strong adaptability, stable and reliable: ≥16° climbing ability and track design can easily cope with uneven ground; ≤0.08mpa ground ratio pressure protects the fragile ground; 18.5kw motor provides stable power to ensure continuous and reliable operation in complex and dangerous environments.
Contact us today for customized configurations and real-time quotes.
