GC-M60L
Loading capacity :≈60m³/h
Body Size :5800mm×1650mm×1700mm
Rated load:6.2T
Product Gallery
Product Information
Products

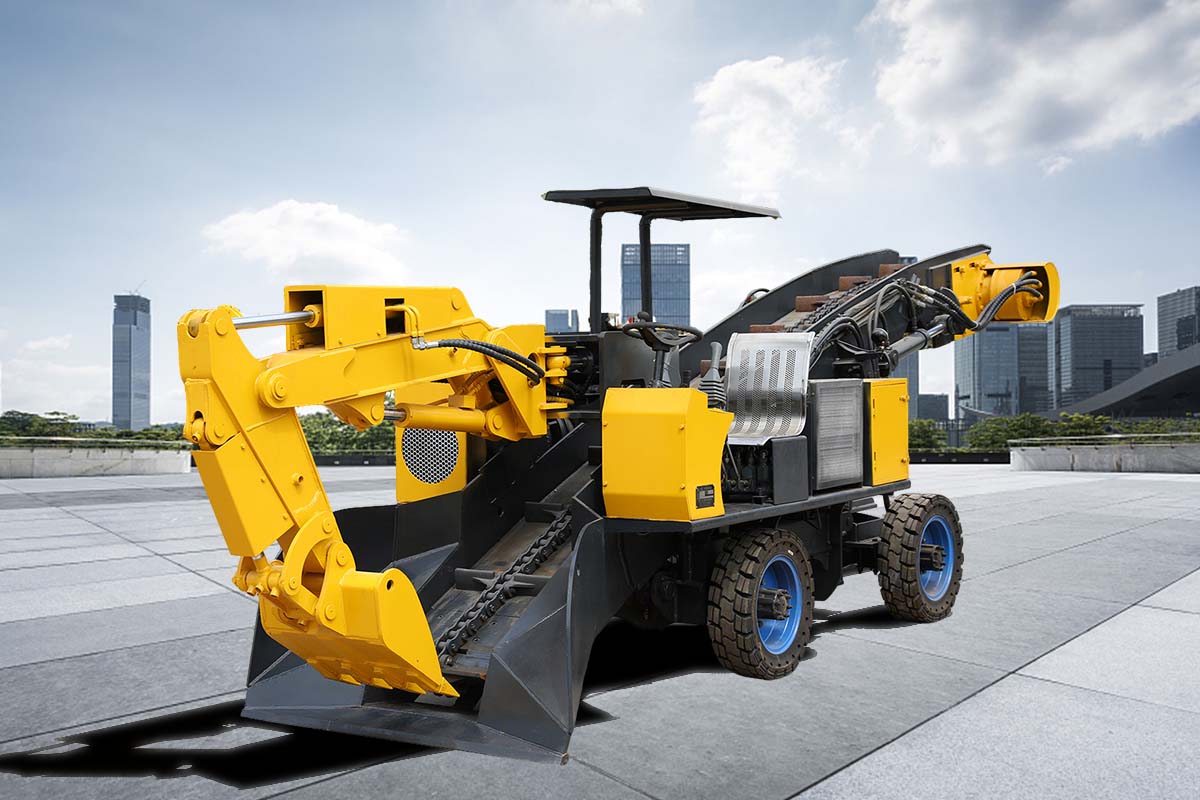

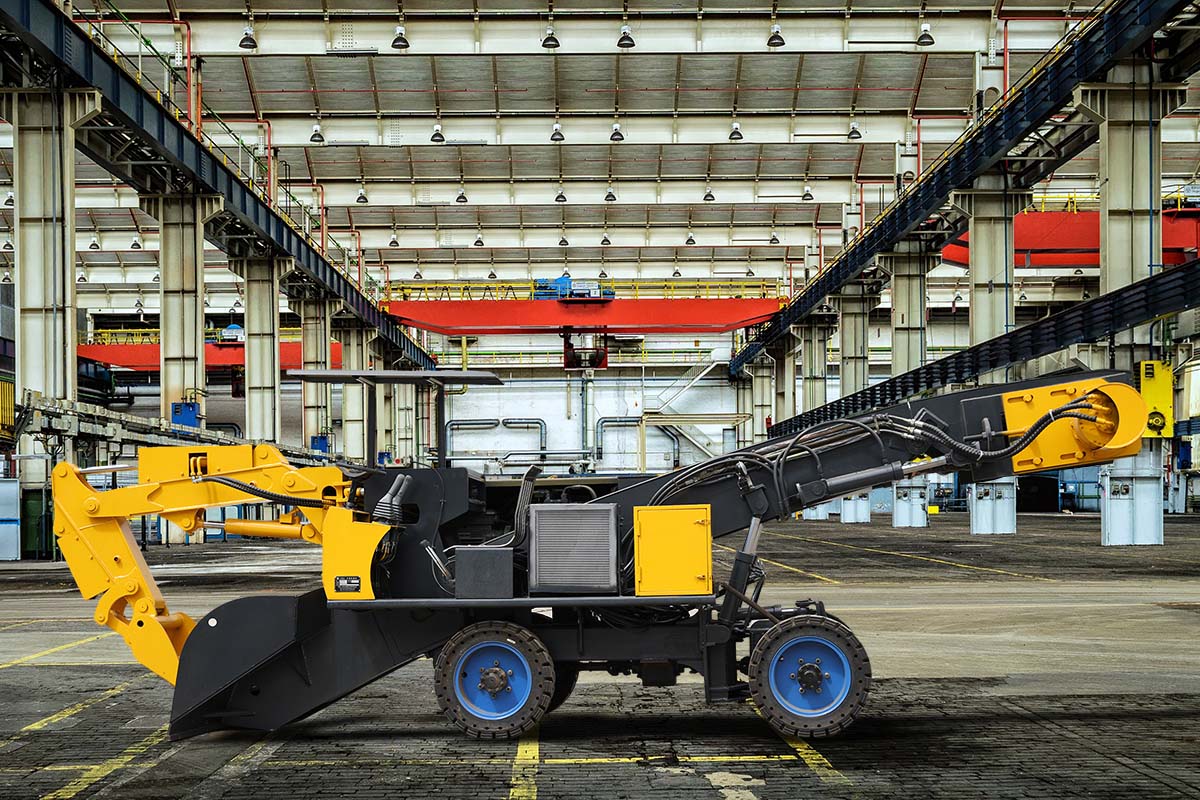

GC-M60L tire-type scraper bazooka, designed for heavy-duty slag clearing operations, is a reliable “hardcore partner” of engineering construction. 6.2T solid machine weight, with 5800mm × 1650mm × 1700mm robust body, stable and reliable operation. 18.5kw/22kw dual-speed motor total The total power of 18.5kw/22kw dual-speed motor, together with 16mpa/25mpa adjustable rated working pressure, the loading capacity is up to ≈60m³/h. With the tire travel system and powerful scraper mechanism, whether it is the heavy slag clearing in the deep part of mines, or the continuous operation of large-scale tunnels, it is able to efficiently complete the task of slag picking and transporting with its strong performance, and fully accelerate the progress of the project.
Usage Scenarios
Heavy-duty slag clearing in mines: In deep mining operations, GC-M60L can easily climb inclined roadways with its ≤18° climbing ability and strong grip of tires; the dual-speed travel mode of high 4.5km/h and low 2km/h, low-speed stability during heavy loads, and high-speed return trip during empty loads, greatly enhancing the transportation efficiency. ≈60m³/h loading capacity and ≥4200mm digging width, quickly clean up a large amount of slag after blasting, 810mm × 580mm × 500mm large-size material throughput capacity, easy to deal with large ores, to ensure uninterrupted mining.
Large Tunnel Construction: In the boring and maintenance of large tunnels, its ≥2.2m×2.2m cross-section is suitable for a variety of tunnel specifications; its width of 1650mm and height of 1700mm allow it to travel freely in tunnels. ±45 ° of the maximum rotary angle with ≥ 1600mm digging distance, flexible cleaning tunnel corner slag; adjustable 16mpa / 25mpa rated working pressure, according to the intensity of the work of free switching power, 1250mm - 1750mm (can be heightened) unloading height to adapt to different transportation vehicles, significantly improve the efficiency of the tunnel out of the slag.
Underground comprehensive pipeline corridor construction: in the underground comprehensive pipeline corridor construction scenario, GC-M60L's scraper transportation mechanism conveys the slag steadily and prevents the material from spilling; 200mm ground clearance effectively avoids the chassis from cutting, and drives steadily on the complex ground; 1800mm - 2700mm digging height and ≥450mm digging depth efficiently completes the excavation and loading of the earth; extendable 1600mm unloading distance facilitates the docking and unloading of the earth; the unloading distance is 1600mm, which is convenient for the unloading of the earth. The 1600mm unloading distance is convenient for docking all kinds of transportation equipment, which helps the construction of pipeline corridor to advance rapidly.
Main parameters
Model | GC-M60L | GC-M80L |
Weight | 6.2T | 8.6T |
Overall dimension(LxWxH) | 5800mm×1650mm×1700mm | 5800mm×1700mm×1850mm |
Loading Capacity | ≈60m³/h | ≈80m³/h |
Min turning radius | 3600mm | 3800mm |
Ground clearance | 200mm | 210mm |
Nominal working pressure | 16mpa/25mpa | 16mpa/25mpa |
Traveling Speed | High:4.5km/h low:2km/h | High:4.5km/h low:2km/h |
Climbing ability | ≤18°(Adapt to the ground) | ≤18°(Adapt to the ground) |
Max.materials by size(LxWxH) | 810mm×580mm×500mm | 810mm×680mm×500mm |
Applied tunnel gradient | ≤10(Adapt to the ground) | ≤13°(Adapt to the ground) |
Applicable section(WxH) | ≥2.2m×2.2m | ≥2.5m×2.5m |
Motor Power | 18.5kw/22kw | 22kw/30kw |
| Excavating Width | ≥4200mm | ≥4800mm |
Excavating Distance | ≥1600mm | ≥1800mm |
Excavating Height | 1800mm-2700mm | 1800-2700mm |
Excavating Depth | ≥450mm | ≥550mm |
Uninstall Height | 1250mm-1750mm(Can be heightened) | 1350mm-1750mm(Can be heightened) |
Minimum Loading Height | 1200mm(Variable) | 1400mm(Variable) |
Uninstall Distance | 1600mm(Can be lengthened) | 1700mm(Can be lengthened) |
| Max.rotation angle | ±45° | ±45° |
Why GC-M60L
Heavy-duty and efficient, power at will: 18.5kw/22kw dual-speed motor with 16mpa/25mpa adjustable rated working pressure, facing different light and heavy slag clearing tasks, free to switch the power mode. The high loading capacity of ≈60m³/h, together with the strong digging performance, can quickly deal with a large amount of sludge and significantly improve the construction efficiency.
Flexible and robust, no fear of terrain: 6.2T machine weight and tire design to provide solid support, high 4.5km/h, low 2km/h two-speed walking in complex terrain, efficient transit; ≤ 18 ° climbing capacity and 200mm ground clearance, easy to cope with the slopes, uneven ground, narrow curves, 3600mm minimum turning radius flexible steering, complex environments unhindered.
Precise adaptation, multi-purpose: ±45° maximum slewing angle, adjustable excavation and loading/unloading parameters, combined with 810mm×580mm×500mm large-size material throughput capacity, precise adaptation of ≥2.2m×2.2m multiple operating sections; flexible unloading height and distance adjustment, adaptable to various types of transportation vehicles, to meet the needs of mines, tunnels, pipeline corridors and other scenarios of operation.
Reliable quality and durability: Selected high-quality core components, combined with mature manufacturing process, ensure the stable operation of the equipment under high-intensity operation. The tire-type design combines flexibility and durability, and the daily maintenance is convenient, which effectively reduces the maintenance cost and downtime, and continuously empowers the engineering construction.
Contact us today for customized configurations and real-time quotes.
